Article-No.: 210897

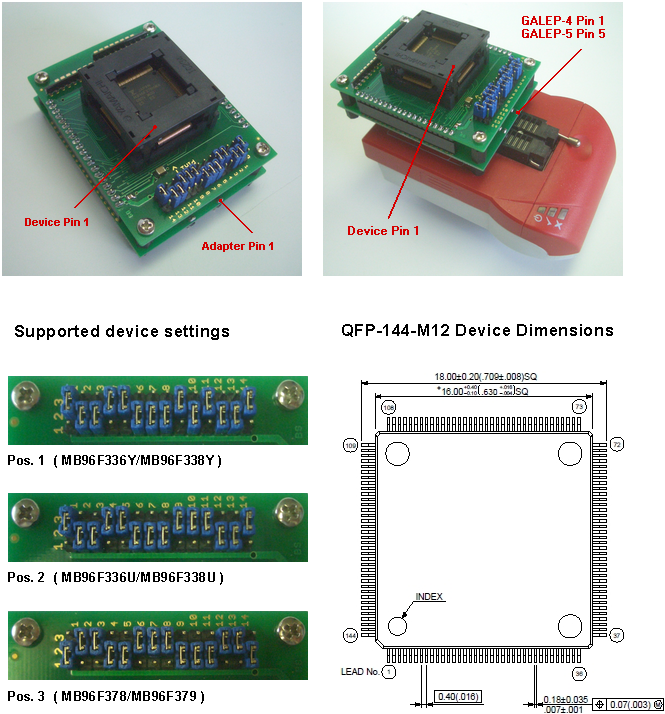

Please follow the pictures below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.
Caution ! Before using the adapter the jumpers must be placed at one of the 3 device-specific positions shown below.
