Article-No.: 210890
Adapter for converting from a 40-pin DIL package to a 144-pin QFP package for MCUs of MB91460 series from Fujitsu ( e.g. MB91F464HB, MB91F467BA ).

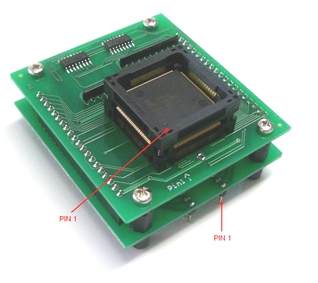

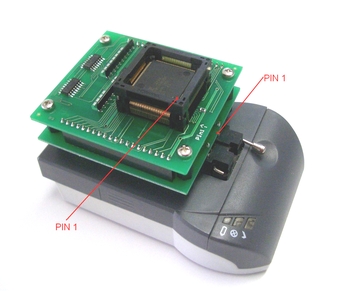

Please follow the pictures below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.
