GALEP Adapter QFP-120-M21 Fujitsu MB96300 Series

Article-No.: 210888

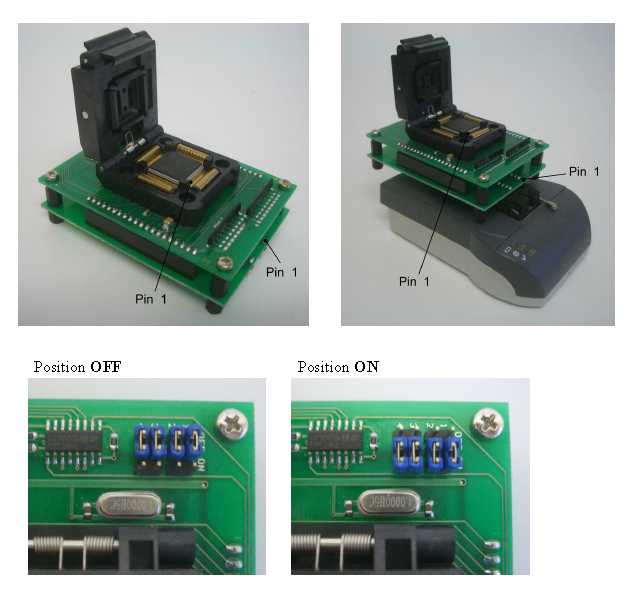

Please follow the pictures below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.

Note : All the 4 jumpers must be placed at position OFF or at position ON.
