Adapter for memory devices in the TSOP-56 package to be used with the GALEP-4 programmer
(40 pin DIL). It cannot be used with other programmers.

This Adapter is required for the most of the memory devices, which come in the TSOP-56 package.

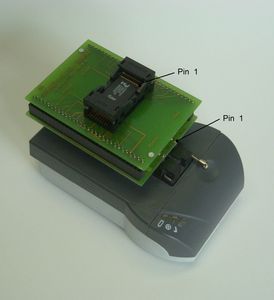

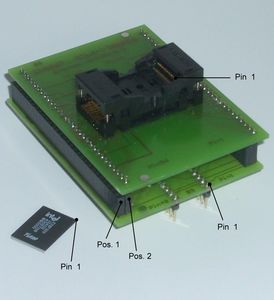

There are two positions to plug the upper adapter board onto the lower adapter board.

The position 1 (left) is for the pinout of the AM29LV640MH/ML and similars.
The position 2 (right) is for the pinout of the INTEL E28F320J3A and similars.

For each position a special pin configuration at the GALEP socket is used, therefore it is very important to select the correct plug position and (!) the correct device type. The needed adapter type and position, which is shown in the program window after a device type selection, must correspond to the really plugged position before any further action.
