GALEP-Adapter 40-DIL => PLCC (MCU)
Article-No.: 210864

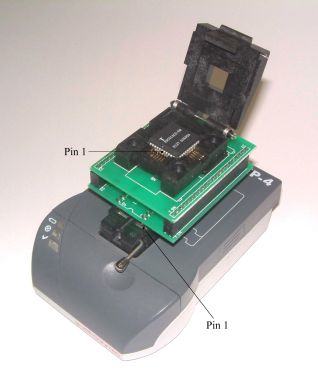

| Adapter for specific
MCU devices in the PLCC-44 package to be used with the GALEP programmer

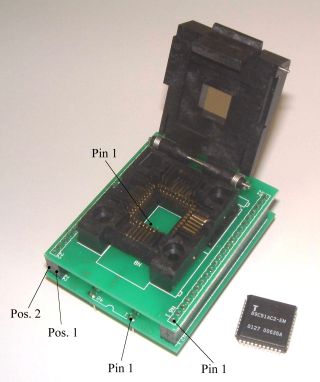

(40 pin DIL). It can also be used with most other programmers. For the different devices in the DIL-40 package an appropriate pin configuration at the GALEP socket will be selected. The same pin configuration is used for the PLCC-44 devices. Because there are different pinouts for the PLCC-44 devices, the plug position of the upper board at the lower bord must be correctly selected: Pos. 1: e.g. P87C591 (Philips) Pos. 2: e.g. T89C51AC2, T89C51CC01 (Atmel) |
|
|
|
|
DIL40 |
PLCC44 |
PLCC44 |
|
|
|
1 |
2 |
3 |
|
P1.0 |
|
2 |
3 |
4 |
|
P1.1 |
|
3 |
4 |
5 |
|
P1.2 |
|
4 |
5 |
6 |
|
P1.3 |
|
5 |
6 |
7 |
|
P1.4 |
|
6 |
7 |
8 |
|
P1.5 |
|
7 |
8 |
9 |
|
P1.6 |
|
8 |
9 |
10 |
|
P1.7 |
|
9 |
10 |
44 |
|
RST |
|
10 |
11 |
12 |
|
P3.0 |
|
11 |
13 |
13 |
|
P3.1 |
|
12 |
14 |
14 |
|
P3.2 |
|
13 |
15 |
15 |
|
P3.3 |
|
14 |
16 |
16 |
|
P3.4 |
|
15 |
17 |
17 |
|
P3.5 |
|
16 |
18 |
18 |
|
P3.6 |
|
17 |
19 |
19 |
|
P3.7 |
|
18 |
20 |
40 |
|
XTAL2 |
|
19 |
21 |
41 |
|
XTAL1 |
|
20 |
1,22 |
43 |
|
Vss |
|
21 |
24 |
29 |
|
P2.0 |
|
22 |
25 |
28 |
|
P2.1 |
|
23 |
26 |
27 |
|
P2.2 |
|
24 |
27 |
26 |
|
P2.3 |
|
25 |
28 |
25 |
|
P2.4 |
|
26 |
29 |
24 |
|
P2.5 |
|
27 |
30 |
23 |
|
P2.6 |
|
28 |
31 |
22 |
|
P2.7 |
|
29 |
32 |
38 |
|
PSEN |
|
30 |
33 |
39 |
|
ALE/PROG |
|
31 |
35 |
11 |
|
EA/Vpp |
|
32 |
36 |
37 |
|
P0.7 |
|
33 |
37 |
36 |
|
P0.6 |
|
34 |
38 |
35 |
|
P0.5 |
|
35 |
39 |
34 |
|
P0.4 |
|
36 |
40 |
33 |
|
P0.3 |
|
37 |
41 |
32 |
|
P0.2 |
|
38 |
42 |
31 |
|
P0.1 |
|
39 |
43 |
30 |
|
P0.0 |
|
40 |
23,44 |
42 |
|
Vcc |
