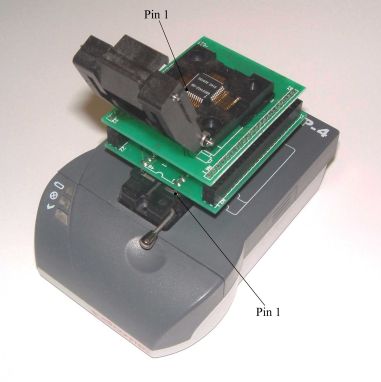

Adapter for specific MCU devices in the QFP-44 package to be used with the GALEP programmer (40 pin DIL). It can also be used with most other programmers.

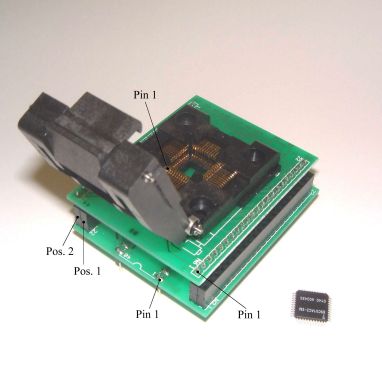

For the different devices in the DIL-40 package an appropriate pin configuration at the GALEP socket will be selected. The same pin configuration is used for the QFP-44 devices. Because there are different pinouts for the QFP-44 devices, the plug position of the upper board at the lower bord must be correctly selected:

Pos. 1: e.g. P87C591 (Philips)
Pos. 2: e.g. T89C51AC2, T89C51CC01 (Atmel)

DIL40

QFP44
Pos. 1

QFP44
Pos. 2

1

40

41

P1.0

2

41

42

P1.1

3

42

43

P1.2

4

43

44

P1.3

5

44

1

P1.4

6

1

2

P1.5

7

2

3

P1.6

8

3

4

P1.7

9

4

38

RST

10

5

6

P3.0

11

7

7

P3.1

12

8

8

P3.2

13

9

9

P3.3

14

10

10

P3.4

15

11

11

P3.5

16

12

12

P3.6

17

13

13

P3.7

18

14

34

XTAL2

19

15

35

XTAL1

20

16,39

37

Vss

21

18

23

P2.0

22

19

22

P2.1

23

20

21

P2.2

24

21

20

P2.3

25

22

19

P2.4

26

23

18

P2.5

27

24

17

P2.6

28

25

16

P2.7

29

26

32

PSEN

30

27

33

ALE/PROG

31

29

5

EA/Vpp

32

30

31

P0.7

33

31

30

P0.6

34

32

29

P0.5

35

33

28

P0.4

36

34

27

P0.3

37

35

26

P0.2

38

36

25

P0.1

39

37

24

P0.0

40

17,38

36

Vcc
