GALEP-Adapter 28 DIL => 28 PLCC
Article-No.: 210862
| Adapter for converting from 28-pin DIL

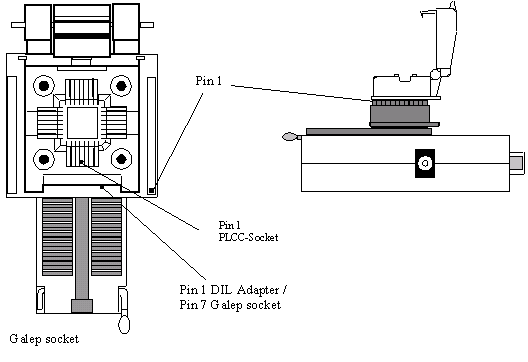

package to a 28-pin PLCC. Please follow the diagram below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter. |
|
|
|
28 pin DIL |
28 pin PLCC |
|
1 - 28 |
1 - 28 |
|
! |
Generally, the adapter also
works with programmers produced by other manufacturers. But it’s highly
recommended that one compare the relevant pin connections. |
