GALEP-Adapter 40-DIL => TSOP40

Article-No.: 210860, 210861


Adapter for devices in the TSOP-40 package to be used with the GALEP programmer (40 pin DIL). It can also be used with most other programmers.

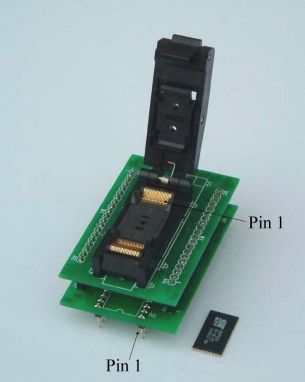

- The adapter 210860 is supplied with a socket for the long package version (10 x 20 mm).

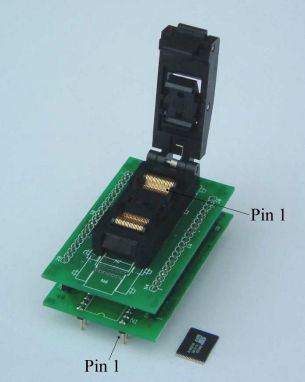

- The adapter 210861 is supplied with a socket for the short package version (10 x 14 mm).

This Adapter is required to program all the devices, which come in the TSOP-40 package.

For the different devices in the DIL-40 package an appropriate pin configuration at the GALEP socket will be selected. The same pin configuration is used for the TSOP-40 devices, because the adapter only converts the pinout by a standard rule: Pin X of the DIL-40 pinout is connected to pin (X+10) of the TSOP-40 pinout (1-11...30-40, 31-1...40-10).
