GALEP-Adapter 32-DIL => TSOP32

Article-No.: 210858, 210859


Adapter for devices in the TSOP-32 package to be used with the GALEP programmer (40 pin DIL). It can also be used with most other programmers.

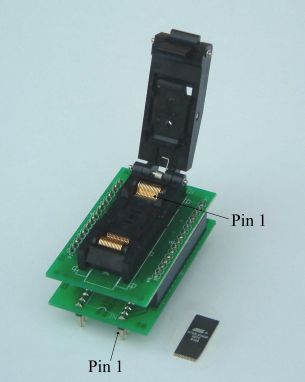

- The adapter 210858 is supplied with a socket for the long package version (8 x 20 mm).

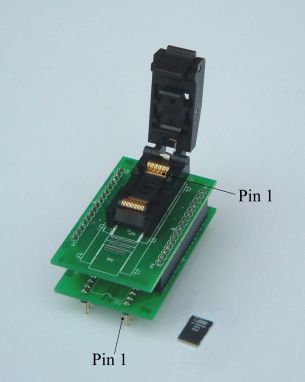

- The adapter 210859 is supplied with a socket for the short package version (8 x 14 mm).

This Adapter is required to program all the devices, which come in the TSOP-32 package.

For the different devices in the DIL-32 package an appropriate pin configuration at the GALEP socket will be selected. The same pin configuration is used for the TSOP-32 devices, because the adapter only converts the pinout by a standard rule: Pin X of the DIL-32 pinout is connected to pin (X+8) of the TSOP-32 pinout (1-9...24-32, 25-1...32-8).
