GALEP-Adapter 28-DIL => SOIC28 (300 mil)
Article-No.: 210851
| Adapter for devices in the SOIC-28
package to be used with the GALEP programmer (40 pin DIL). It can also

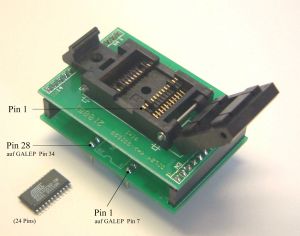

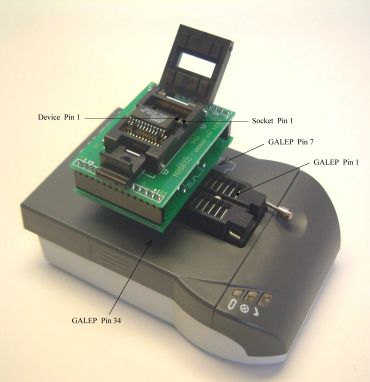

be used with most other programmers. Please follow the pictures below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter. Devices with less than 28 pins can be placed into the adapter just as the DIL packages on the GALEP socket. |
|
|
|
|
28 pin DIL |
28 pin SOIC |
|
1 - 28 |
1 - 28 |
