GALEP-Adapter 16-DIL => SOIC16 (150 mil)
Article-No.: 210849
| Adapter for devices in the SOIC-16
package to be used with the GALEP programmer (40 pin DIL). It can also

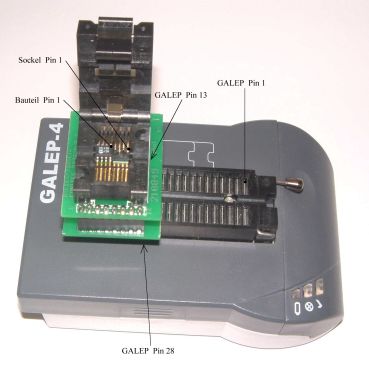

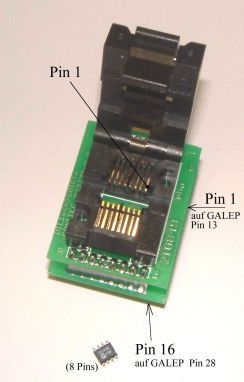

be used with most other programmers. Please follow the pictures below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter. Devices with less than 16 pins can be placed into the adapter just as the DIL packages on the GALEP socket, but it’s a litlle difficult to keep the exact position of the device. |
|
|
|
16 pin DIL |
16 pin SOIC |
|
1-16 |
1-16 |
