Adapter 40pin DIL into 80pin QFP

Article-No.: 210848


Adapter for converting from a 40-pin DIL package to an 80-pin QFP package (for micro-controllers).

Two connection-types are supported with this adapter.

Please see the two example-types listed below

Examples for Type 1: Siemens C164CI
Examples for Type 2: Siemens C515C-8E

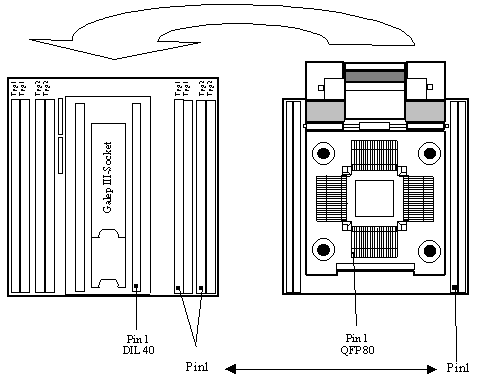

Top view with open lock!



Please carefully note the correct orientation, when inserting the upper board into the lower board (see diagram above).
The diagram also illustrates how the adapter will fit into the GALEP.
