Adapter 40pin DIL into 44pin (T)QFP for MCU΄s
Article-No.: 210847 - for QFP
Article-No.: 210847A - for TQFP
With this adapter you can program the most common micro-controllers in a 44-pin QFP package.
Semiconductor manufacturers have not been able to agree on a standardized pattern for the conversion from 40-pin DIL packages into 44-pin QFP packages. Therefore, as a rule, a special adapter is required for each device family.
However, our adapter supports four of the most typical connection patterns. You can select the pattern by simply re-inserting the upper board of the adapter (with the zero-insertion-force socket) into the lower board.

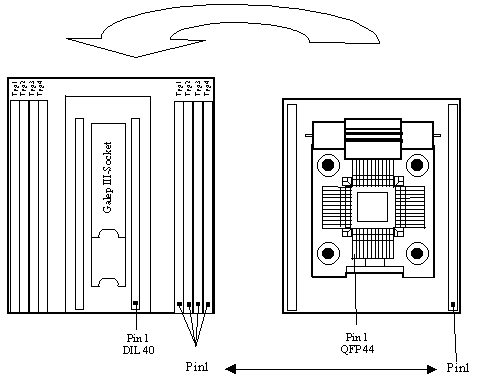

Top view with open lock!
Please carefully note the correct orientation, when inserting the upper board into the lower board (see diagram above).
The diagram also illustrates how the adapter will fit into the GALEP.
The list below contains the connection pattern type for the most common devices. Of course the adapter also supports additional devices which are not listed. Using a datasheet, and the connection list below, you can easily find which connection pattern matches the desired device.
Examples for Type 1:Microchip:;PIC17C4x
Examples for Type 2;MicrochipPIC 16C774 16C74(A) 16C77
Examples for Type 3;Atmel:AT89LS53 89LS8252/S8252 89LV55 89S53 90
S4414/S4434/ 90S8515/S8535
Dallas:DS87C520
Phillips:83 C575/C576 - 87 C51/C524/C528/C575/C576/C654
89 C52/C54/C58/C536/C538
Siemens:C501
SST:89 C54/58 89 F54/58
Winbond:W77 E58 W78 E51/E52/E54/E58 W78
C51/C52/C54
Examples for Type 4;Siemens:C505(C)A

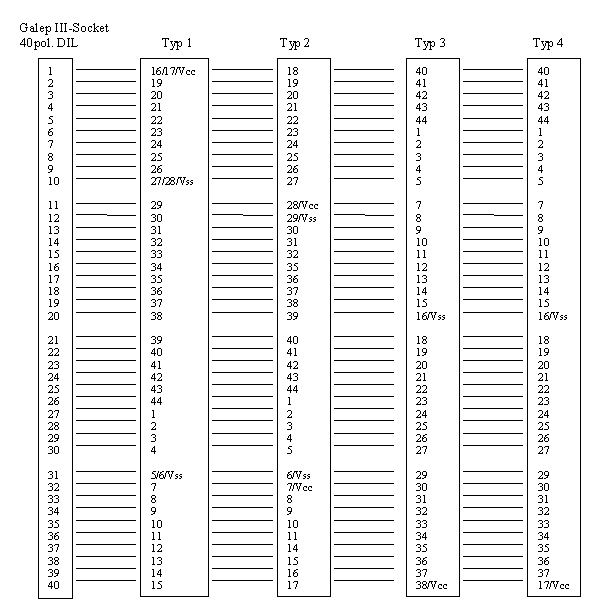

Connection list
Generally, the adapter also works with programmers produced by other manufacturers. But it΄s highly recommended that one compare the relevant pin connections.
