Adapter 40pin DIL into 44pin SOP for FLASH
Article-No.: 210846
Adapter for converting from a 40-pin DIL package to a 44-pin SOP package (for Flash-memory).
Two of the more common connecting-types for flash-memory are supported with this adapter. The appropriate connection type is set with four Jumpers. The list below gives some examples of certain connection-types and their appropriate jumper-positions.

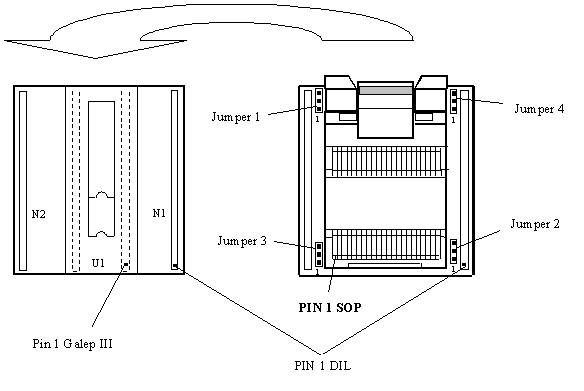

Please follow the diagram below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.
;
Top view with open lock!
Examples:
Type 1 : 16/8-Bit Flash 29F100B/T, 29F200B/T, 29F400B/T, 29F800B/T von AMD und Fujitsu,
28F200Bx-B/T, 28F400Bx-B/T, 28F800Bx-B/T von Intel
Type 2 : 8-Bit Flash 29F016, 29F032, 29F080, von AMD ( not implement yet ! )
The connection type is selected by means of four jumpers: J1, J2, J3 and J4.
Type 1 : J1=1-2 J2=1-2 J3=2-3 J4=1-2
Type 2 : J1=2-3 J2=2-3 J3=1-2 J4=2-3
Before inserting any device, please be sure to double-check the connection type by consulting the connection list below, and also the prescribed jumper positions
Connection-list
|
|
Type
1 SOP |
Type
2 SOP |
|
DIL |
Type
1 SOP |
Type
2 SOP |
|
|
1
2
3
4
5
6
7
8
9
10 |
1
3
12
18
2
20
22
31
33
13
|
1
3
25
18
2
20
22
31
29
13 |
J2
J4 |
21
22
23
24
25
26
27
28
29
30 |
11
10
9
8
7
6
4
5
42
32 |
16
10
9
8
7
6
4
5
42
32 |
J1 |
|
11
12
13
14
15
16
17
18
19
20 |
44
30
28
26
24
21
19
17
15
14 |
44
30
28
26
24
21
19
17
15
14 |
|
31
32
33
34
35
36
37
38
39
40
|
41
40
39
38
37
36
35
34
43
23 |
41
40
39
38
37
36
35
27
43
23 |
J3 |
Generally, the adapter also works with programmers produced by other manufacturers. But itīs highly recommended that one compare the relevant pin connections.
