Adapter 24pin DIL into 28pin PLCC for GAL20V8 and 22V10
Article-No.: 210845
Adapter for converting from 24-pin DIL package to a 28-pin package for GAL 20V8 and 22V10.

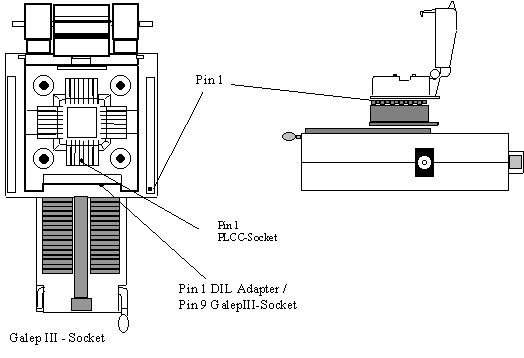

Please follow the diagram below to connect the adapter onto the GALEP in the right orien-
tation, and to correctly place the programmable device into the adapter.
Top view with open lock!
Connection-list DIL => PLCC:
| 24 pin DIL | 28 pin PLCC |
| 1-6 |
2-7 |
| 7-12 | 9-14 |
| 13-18 | 16-21 |
| 19-24 | 23-28 |
Generally, the adapter also works with programmers produced by other manufacturers. But itīs highly recommended that one compare the relevant pin connections.
