Adapter 20pin DIL into 20pin PLCC for GAL16V8

Article-No.: 210844

Adapter for converting from a 20-pin DIL package to a 20-pin package for GAL 16V8.

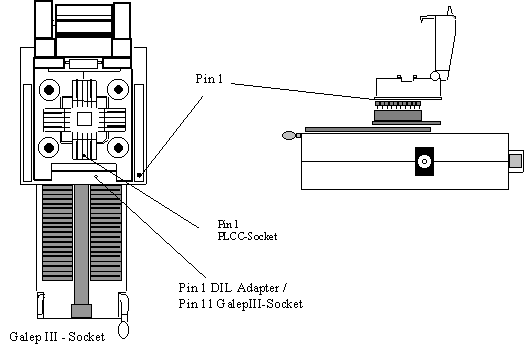

Please follow the diagram below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.

Top view with open lock!

Connection-list DIL => PLCC:

DIL20 20Pol PLCC

1 : 1



Generally, the adapter also works with programmers produced by other manufacturers. But itīs highly recommended that one compare the relevant pin connections.
