Adapter 28pin DIL into 32pin PLCC for EPROM and Flash

Article-No.:210843

Adapter for converting from a 28pin DIL-package to a 32pin PLCC package (EPROM and FLASH memory).

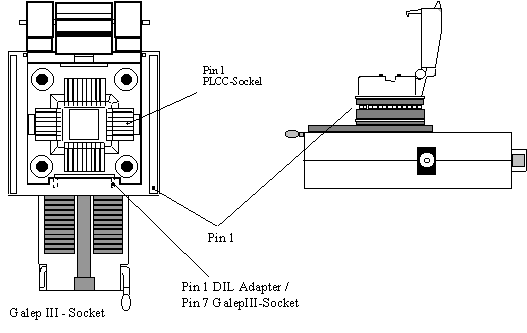

Please follow the diagram below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.

Top view with open lock!





Please note: For converting 32-pin DIL to 32-pin PLCC, a different adapter (No.: 210842eprad32) is required!

The adapter pins are connected to the PLCC socket according to the following connection list. Please check whether the adapter is suitable for your device.

28 pin DIL - socket 32 pin PLCC - Socket
Pin  1 - 10 Pin   2 - 11
Pin 11 -14  Pin 13 - 16
Pin 15 - 22  Pin 18 - 25
Pin 23 - 28 Pin 27 - 32

The pins 1, 12,17 and 26 at the  PLCC-socket are not connected



Generally, the adapter also works with programmers produced by other manufacturers. But itīs highly recommended that one compare the relevant pin connections.
