Article-No.: 210842

Adapter for converting from a 32pin DIL package to a 32pin PLCC package (EPROM and FLASH memory).

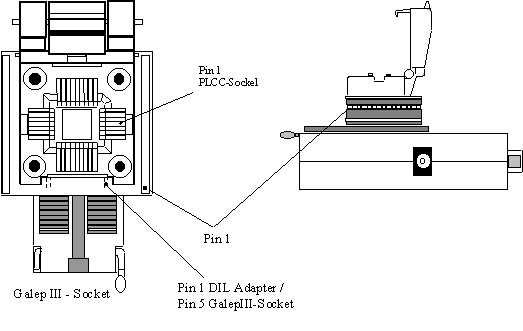

Please follow the diagram below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.

Top view with open lock!

Please note: For converting 28pin DIL into 32pin PLCC, a different adapter (No.: 210843eprad28) is required!

The adapter pins are connected 1:1 to the PLCC-socket. Please check, whether the adapter is suitabel for your device.

Generally, the adapter also works with programmers produced by other manufacturers. But it´s highly recommended that one compare the relevant pin connections.
