Adapter for converting from a 40-pin DIL package to a 100-pin LQFP package (for MCU MB90Fxxx from Fujitsu).

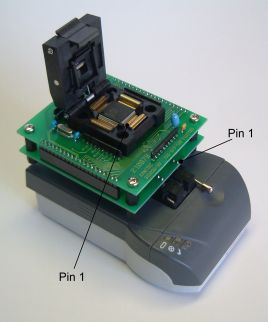

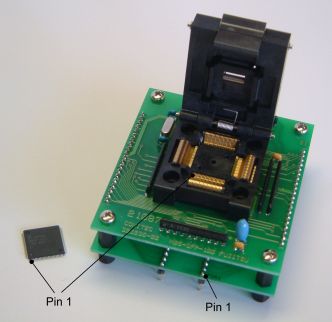

Please follow the diagram below to connect the adapter onto the GALEP in the right orientation, and to correctly place the programmable device into the adapter.
